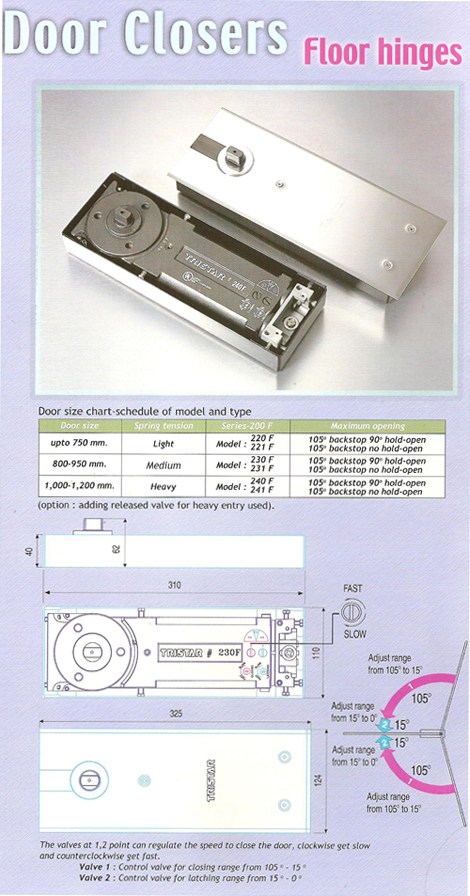

Series 200F
Maximum door width:
1,200 mm.,
maximum door weight:
100 kg.
Series-200F have a 7 mm.
height spindle until for metal,
aluminium glass door.
Adjustment
in steel case:
6 mm. length
8 mm. width
4 mm. height.
Standard Cover Plate:
Stainless Steel Finishing :
- Polish Stainless
Steel (PSS)
- Satin Stainless
Steel (SSS)
- Gold-Titanium
Coating Stainless
Steel (GTS)
- 12 mm. glass weight
30 kgs. per square meter.
- To resisting winload
required heavier
spring tension.
- Solid wooden door
with maximum
thickness of 40 mm.
required weaker
spring tension.
- Lite hollow wooden door
to be used light
spring tension only. |
