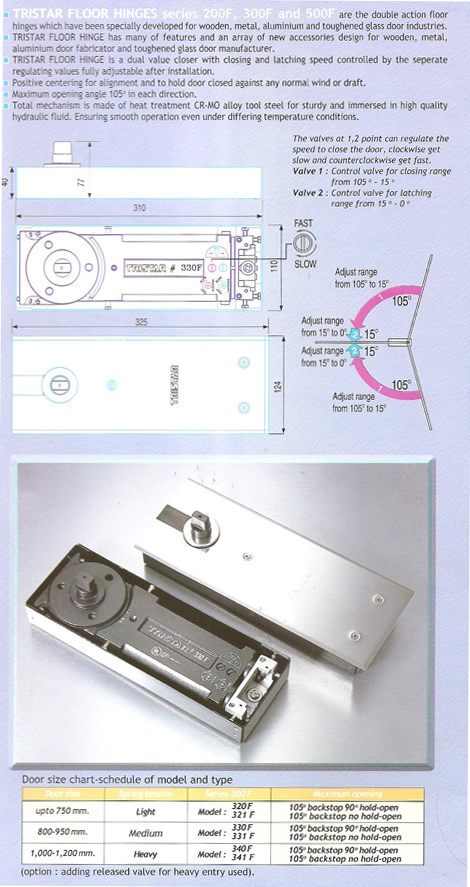

Series 300F
Maximum door width:
1,200 mm.,
maximum door weight:
100 kg.
Series-300F have a
22 mm. height spindle
until for metal,
aluminium glass door.
Adjustment in steel case:
6 mm. length
8 mm. width
4 mm. height.
Standard Cover Plate:
Stainless Steel
Finishing :
- Polish Stainless
Steel (PSS)
- Satin Stainless
Steel (SSS)
- Gold-Titanium
Coating Stainless
Steel (GTS)
- 12 mm. glass weight
30 kgs. per square meter.
- To resisting winload
required heavier spring
tension.
- Solid wooden door with
maximum thickness of 40 mm.
required weaker spring tension.
- Lite hollow wooden door
to be used light spring
tension only. |
