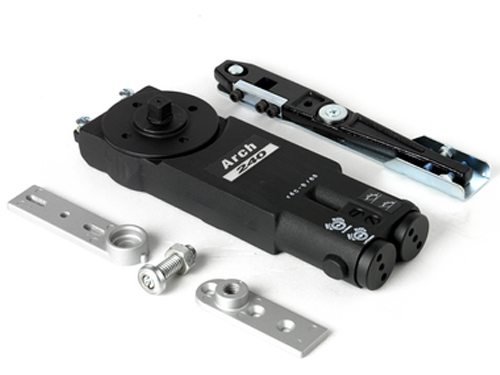

ARCH CONCEALED OVERHEAD CLOSER

is a double action closer which has been specially  developed for the wooden, metal, aluminium and toughened glass door industries.

ARCH CONCEALED OVERHEAD CLOSER SERIES-200

is a dual value closer with closing and latching speed controlle by the separated regulating values fully adjustable after installation Positive centering for alignment and to hold door closed against any normal wind or draft. Maximum opening angle 105º in each direction. Total mechanism is made of heat treatment CR-MO .alloy tool steel for sturdy and immersed in high, quality hydraulic fluid. Ensuring smooth operation even under differing temperature conditions. Maximum door width 1,200 mm., maximum door weight 100 kgs. Fully adjustment dual purpose radial ball-bearing bottom pivot sets ars provided for floor or threshold mounted center pivoted installation. Fit in an aluminium header or transom bar! as small as 1.75 inch x 4.00 inch.
