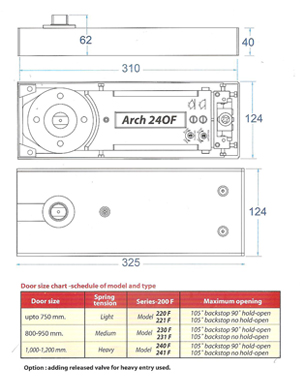

Maximum door width
: 1,200 mm.,
maximum door weight 100 kgs.
: 100 kgs.
Series-200F have a 7 mm. height spindle unit for the metal,
aluminium glass door.
Adjustment in steel case :
6 mm. length
8 mm. width
4 mm. height.
Standard Cover Plate :
Stainless Steel
Finishing :
- Polish Stainless Steel (PSS)
- Satin Stainless Steel (SSS)
- Gold-Titanium
Coating Stainless Steel (GTS)
- 12 mm.glass weight 30 kgs.per square meter.
- To resisting windload required heavier spring tension.
- Solid wooden door with maximum thickness of 40 mm. required
weaker spring tension.
- Lite hollow wooden door to be used light spring tension only.
